Solidworks Modeling
Pasta Maker
In an exercise of reverse engineering I deconstructed my pasta maker and recreated it as a working assembly in Solidworks. I am currently studying to take the CSWA/P/E exams in order to deepen my skills with Solidworks.(December 2023)


From Real-life

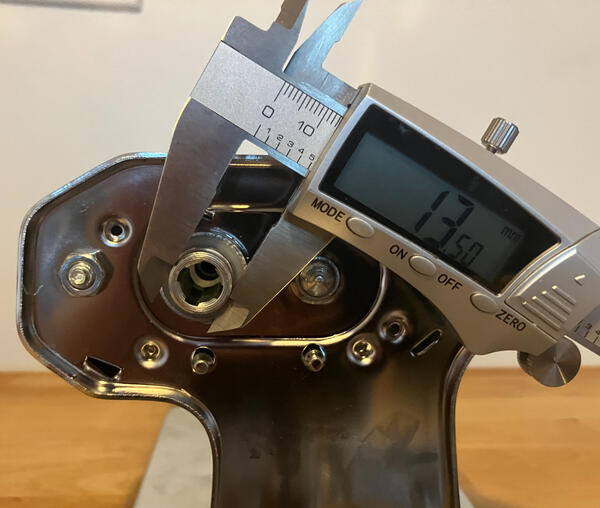

Using hand tools and calipers I disassembled and measured my pasta maker.

To Part

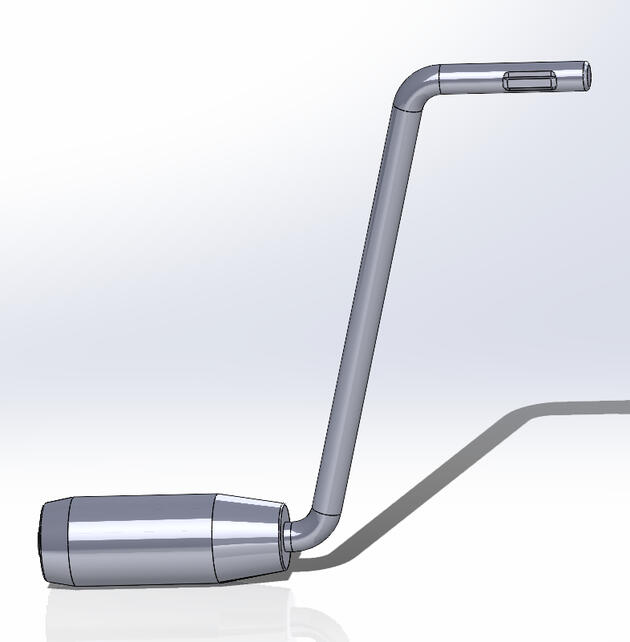

I modeled a total of thirteen unique parts using the measurements I took with my calipers.

To Assembly

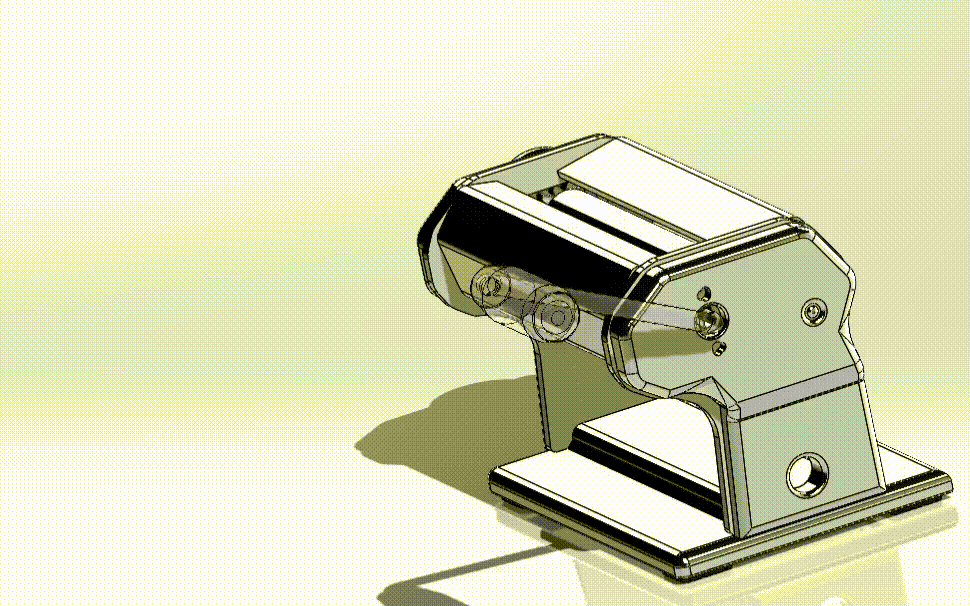

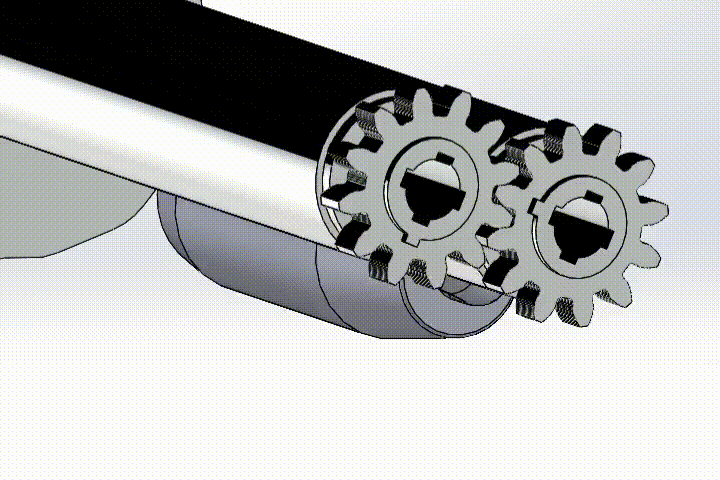

I assembled these parts into a mechanically functional pasta maker assembly in Solidworks.
